Webhook payloads, signatures, delivery, and limits

Webhooks send a flow's visitor context or a form submission to your HTTPS endpoint. Use them to receive quiz results in your own application or an automation service such as Zapier or Make.

You need an HTTPS receiver and a project with webhook access. A native email-platform integration is not required for a webhook form. Your receiving application handles any later contact creation, email subscription, or automation. Webhook delivery alone doesn't prove those actions succeeded.

Flow nodes and form actions

Flow traversal does not wait for a webhook's delivery result. A later redirect waits for pending webhook and integration work for at most two seconds, then continues. Don't design a branch that assumes the receiving application has already finished processing.

Configuration changes need publication for the normal live visitor path. Preview skips delivery, and the on-site debugger records the proposed write without sending it.

Browser-to-relay request

The snippet posts JSON to /{teamPid}/webhooks/relay on its configured relay host. This visitor endpoint is separate from the authenticated REST API. It does not require an API token or dashboard session. The project must have webhooks enabled, and the destination comes from the project's saved configuration, not a URL supplied in the request.

This relay accepts visitor-supplied context. A signed outbound request proves that RightMessage relayed the body, not that the visitor's identity or answers were independently verified.

Shared flow and form payload fields

The endpoint receives a JSON body, not form-encoded fields. These fields are common to both event types.

An empty collection can serialize as []. Don't require every optional visitor property to be present.

Flow example

This illustrative outbound request uses a fictional WorkForge receiver.

POST /rightmessage/webhook HTTP/1.1
Host: example.com
Content-Type: application/json
X-RightMessage-Team-Id: 123456789
X-RightMessage-Flow-Id: ofn_workforge
X-RightMessage-Signature: sha256=<HMAC_HEX>
User-Agent: RightMessage-Webhook/1.0

{
	"event": "webhook_action",
	"flowId": "ofn_workforge",
	"nodeId": "workforge-qualified",
	"visitor": {
		"id": "workforge-example-visitor",
		"email": "lead@example.com",
		"segments": {"Team size": "11-50"},
		"scores": {"Project readiness": 8, "recommended_plan": "Team"},
		"variables": {"recommended_plan": "Team"}
	},
	"pageUrl": "https://example.com/assessment",
	"timestamp": "2026-10-13T12:00:00+00:00",
	"meta": {"source": "workforge-assessment"}
}

<HMAC_HEX> is a placeholder, not a usable signature. A successful receiver can return 204 No Content or another successful 2xx response. RightMessage doesn't parse a success response body into flow variables.

Form additions

Form webhooks add offerId, actionId, and form.

Use form.email for a newly submitted address. Without a connected profile, visitor.email can still be null in the same payload.

This illustrative payload shows that distinction.

{
	"event": "form_webhook_submission",
	"flowId": "ofn_workforge",
	"nodeId": "workforge-form-action",
	"visitor": {
		"id": "workforge-example-visitor",
		"email": null,
		"segments": {"Team size": "11-50"}
	},
	"pageUrl": "https://example.com/demo",
	"timestamp": "2026-10-13T12:00:00+00:00",
	"offerId": "ofr_workforge",
	"actionId": "workforge-form-action",
	"form": {
		"email": "lead@example.com",
		"fields": {"Company": "WorkForge", "Team size": "11-50"}
	}
}

The payload includes IDs, not an automatic flow name. Add a stable label such as {"flow":"WorkForge assessment"} to additional context if your automation needs one.

Segment and field limitations

visitor.segments is not a lossless list of every selected answer. When several active segments share a group, the current payload stores one value under that group's name. Later entries overwrite earlier ones. Groups with identical rendered names can also collide.

Form fields use labels as keys. Give fields distinct labels, and update your receiving automation when you rename them. Don't assume email-platform field IDs are the webhook keys.

Additional context substitutions

The extra-data field uses these literal {{ ... }} substitutions. It is not the general flow Liquid engine.

Unsupported placeholders are not evaluated. Values are substituted before JSON parsing. Quotes or other characters in substituted text can make the result invalid JSON, in which case meta is sent as a string. For reliable automation, prefer the structured visitor and form fields for visitor-provided values.

Outbound headers

There is no editor option for arbitrary authorization headers. Configure your receiver to verify the RightMessage signature.

Verify webhook signatures

Every outbound request includes X-RightMessage-Signature in this format.

sha256=<lowercase hexadecimal HMAC-SHA256 of the raw request body>

The key is the project's webhook signing secret. Compute the HMAC over the exact received bytes before parsing JSON. Parsing and reserializing can change escaping or whitespace and invalidate an otherwise correct signature.

This PHP receiver example verifies the raw body with a constant-time comparison. RIGHTMESSAGE_WEBHOOK_SECRET is server-side secret storage.

<?php
$secret = getenv('RIGHTMESSAGE_WEBHOOK_SECRET');
if ($secret === false || $secret === '') {
	http_response_code(503);
	exit;
}
$payload = file_get_contents('php://input');
$signature = $_SERVER['HTTP_X_RIGHTMESSAGE_SIGNATURE'] ?? '';
$expected = 'sha256=' . hash_hmac('sha256', $payload, $secret);
if (!hash_equals($expected, $signature)) {
	http_response_code(401);
	exit;
}
$data = json_decode($payload, true, 512, JSON_THROW_ON_ERROR);

The signature authenticates the bytes sent by the relay. It does not prove that the visitor-provided email, page URL, or answers are true. The browser supplies visitor context. Don't use a webhook payload alone to grant account access or authorize a purchase.

The signature has no separate signed timestamp header or unique delivery ID header. The JSON includes timestamp, but your receiver must enforce any freshness and duplicate-processing policy it needs.

Find and rotate the signing secret

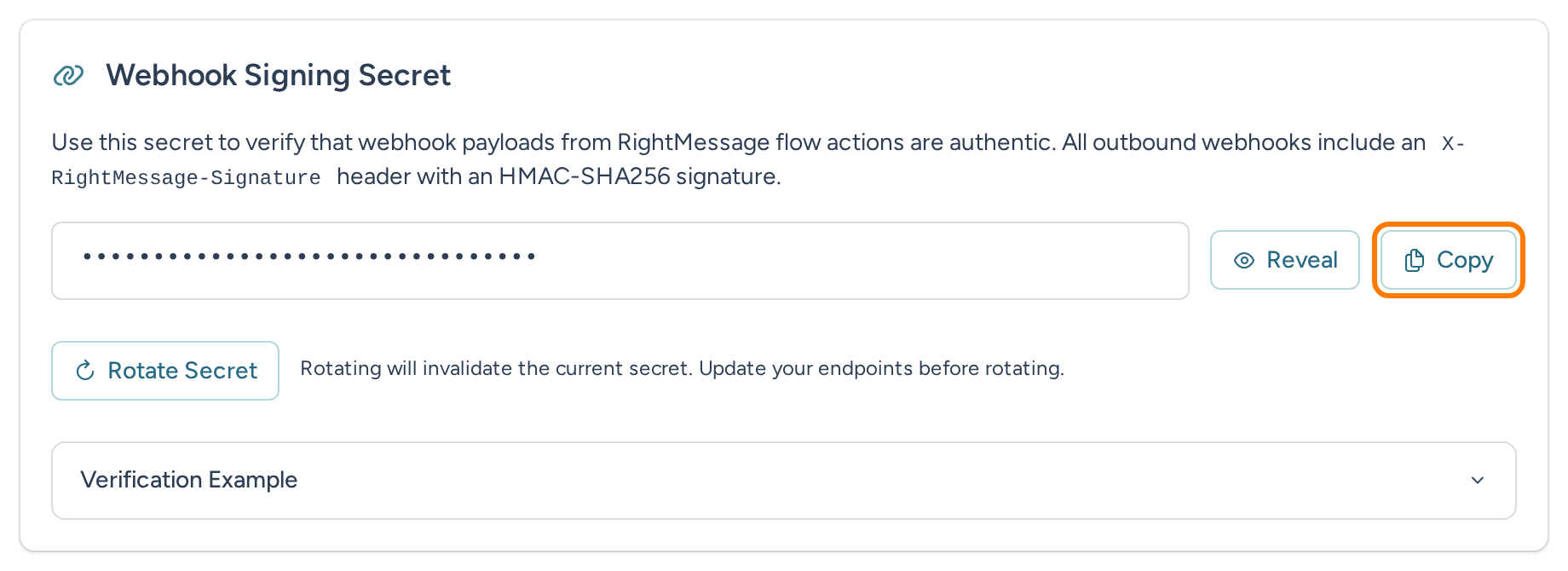

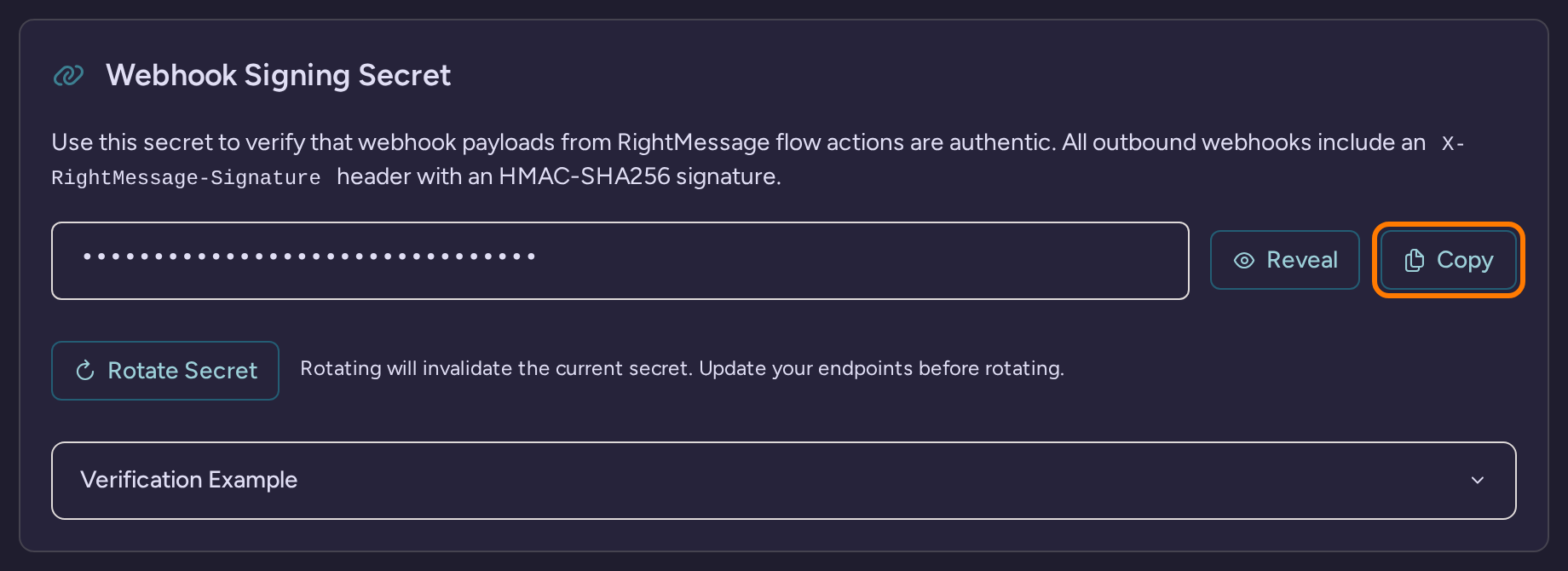

The Webhook Signing Secret card is under project Settings > Integration > Other integrations. Reveal shows the secret, Hide masks it, and Copy copies it. Verification Example expands PHP, Node.js, Ruby, and Python examples. RightMessage creates the secret when first requested if the project has none.

Enlarge

Webhook Signing Secret settings with the secret masked and Reveal, Copy, Rotate Secret, and Verification Example controlsOriginalOriginal

Rotation replaces the secret immediately. RightMessage does not sign with both keys during a transition. Coordinate the receiver update before rotating. The new value isn't available until rotation completes.

1. Click Rotate Secret.
2. Review the Rotate Webhook Secret dialog.
3. Click Rotate Secret to replace the secret, or Cancel to keep it.
4. Update your receiver's secret storage with the new value.

Keep the secret out of client-side JavaScript and screenshots.

Delivery behavior and limits

Clearing a browser's data does not undo external processing. A changed visitor ID or repeated form submission can send another request. Make receiving operations safe to repeat when duplicate processing would matter.

Delivery logs

The flow node's Logs tab shows the ten most recent recorded deliveries, newest first. Its refresh control reloads them. Columns are Time, Status, Code, Duration, and Visitor.

Expand a row to inspect Request Payload or Response. The response view shows Status Code, Error, Duration, and Target URL. It doesn't provide the full successful response body. HTTP failure messages contain a shortened response-body excerpt.

A blank log is not proof that a request never happened. The current log reader also returns an empty list if its history query fails. Check the receiver's logs when investigating a missing delivery.

Browser relay HTTP responses

The browser-to-relay request returns one of these responses. The relay resolves the URL, method, timeout, and extra-data template from project configuration before it signs and sends the outbound request. It is not a general-purpose proxy.

For the configuration steps, see Webhook flow node and Form actions. For a complete integration test, see Verify an integration change.
